Atlatos supports single sign-on (SSO) logins through SAML 2.0. A SAML 2.0 identity provider (IDP) can take many forms, one of which is a self-hosted Active Directory Federation Services (ADFS) server. ADFS is a service provided by Microsoft as a standard role for Windows Server that provides a web login using existing Active Directory credentials.
To use ADFS to log in to your Atlatos instance, you need the following components:
- An Active Directory instance where all users have an email address attribute. Another attribute is also possible. Important: The selected attribute must be the username in Atlatos.
- A Atlatos instance.
- A server running Microsoft Server 2012 or 2008. This guide uses screenshots from Server 2012R2, but similar steps should be possible on other versions.
- A SSL certificate to sign your ADFS login page and the fingerprint for that certificate.
- If you're using host mapping in your Atlatos instance, an installed certificate for hosted SSL.
After you meet these basic requirements, you need to install ADFS on your server. Configuring and installing ADFS is beyond the scope of this guide, but is detailed in a Microsoft article.
When you have a fully installed ADFS installation, note down the value for the 'SAML 2.0/W-Federation' URL in the ADFS Endpoints section. If you chose the defaults for the installation, this will be '/adfs/ls/'.
Step 1 - Adding a Relying Party Trust
At this point you should be ready to set up the ADFS connection with your Atlatos account. The connection between ADFS and Atlatos is defined using a Relying Party Trust (RPT).

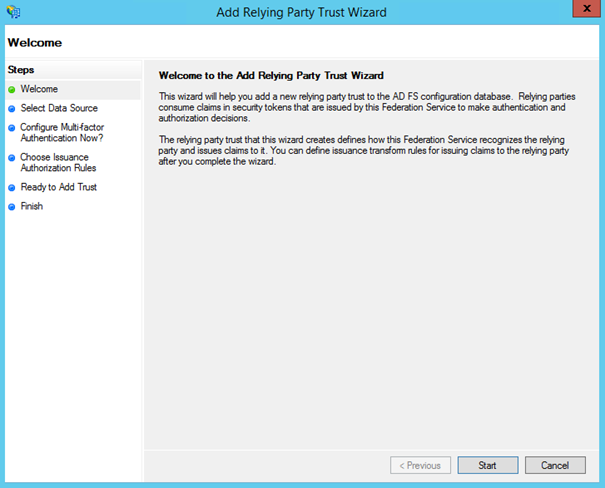

1. Select the Relying Party Trusts folder from AD FS Management, and add a new Standard Relying Party Trust from the Actions sidebar. This starts the configuration wizard for a new trust.
2. In the Select Data Source screen, select the first option and add the following URL (Atlatos metadata): https://www.atlatos-traveller.de/AtlatosV3/Traveller?plugin=cobilogin.metadata
Step 2 - Creating claim rules
Once the relying party trust has been created, you can create the claim rules and update the RPT with minor changes that aren't set by the wizard. By default the claim rule editor opens once you created the trust.
1. To create a new rule, click on Add Rule. Create a Send LDAP Attributes as Claims rule.
2. On the next screen, using Active Directory as your attribute store, do the following:
3. From the LDAP Attribute column, select E-Mail Addresses.
From the Outgoing Claim Type, select E-Mail Address (In this case the atlatos user name is also the E-Mail Address).
4. Click on OK to save the new rule.
5. Create another new rule by clicking Add Rule, this time selecting Transform an Incoming Claim as the template.
6. On the next screen:
1. Select E-mail Address as the Incoming Claim Type.
2. For Outgoing Claim Type, select Name ID.
3. For Outgoing Name ID Format, select Email.
7. Leave the rule to the default of Pass through all claim values.
7. Finally, click OK to create the claim rule, and then OK again to finish creating rules.
Step 3 - (optional) Adjusting the trust settings
You still need to adjust a few settings on your relying party trust. To access these settings, select Properties from the Actions sidebar while you have the RPT selected.
- In the Advanced tab, make sure SHA-256 is specified as the secure hash algorithm.
- In the Endpoints tab, click on add SAML to add a new endpoint.
- For the Endpoint type, select SAML Logout.
- For the Binding, choose POST.
- For the Trusted URL, create a URL using:
1. The web address of your ADFS server
2. The ADFS SAML endpoint you noted earlier
3. The string '?wa=wsignout1.0'
The URL should look something like this: https://sso.yourdomain.tld/adfs/ls/?wa=wsignout1.0.
- Confirm you changes by clicking OK on the endpoint and the RPT properties. You should now have a working RPT for Atlatos.
Note: Your instance of ADFS may have security settings in place that require all Federation Services Properties to be filled out and published in the metadata. Check with your team to see if this applies in your instance. If it is, be sure to check the Publish organization
